4 Wheel Drive EPA Diesel Engine Telescopic Handler 2.5T load Telescopic Forklift 4WD Telehandler

Name: 4 Wheel Drive EPA Diesel Engine Telescopic Handler 25T load Telescopic Forklift 4WD Telehandler
Brand: WORLD
Price: 10000 USD

China 4 Wheel Drive EPA Diesel Engine Telescopic Handler 2.5T load Telescopic Forklift 4WD Telehandler factory

Brand Name : WORLD

Model Number : WEA25-4

Certification : Provided

Place of Origin : China

MOQ : 1

Price : 10000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 set/month

Delivery Time : 30 days

Packaging Details : nude

Brand : WORLD

Control System : Manual/Automatic

Drive Type : 4-wheel

Fork Length : 5730mm

Fork Width : 2390mm

Loading Capacity : 2500kg

Max. Lifting Height : 7000mm

Max. Out-reach Distance : 3350mm

Max.Loading Capacity : 1300kg

Load Center : 500mm

Travelling Speed(unloaded) : 30km/h

Contact Now

Product Description

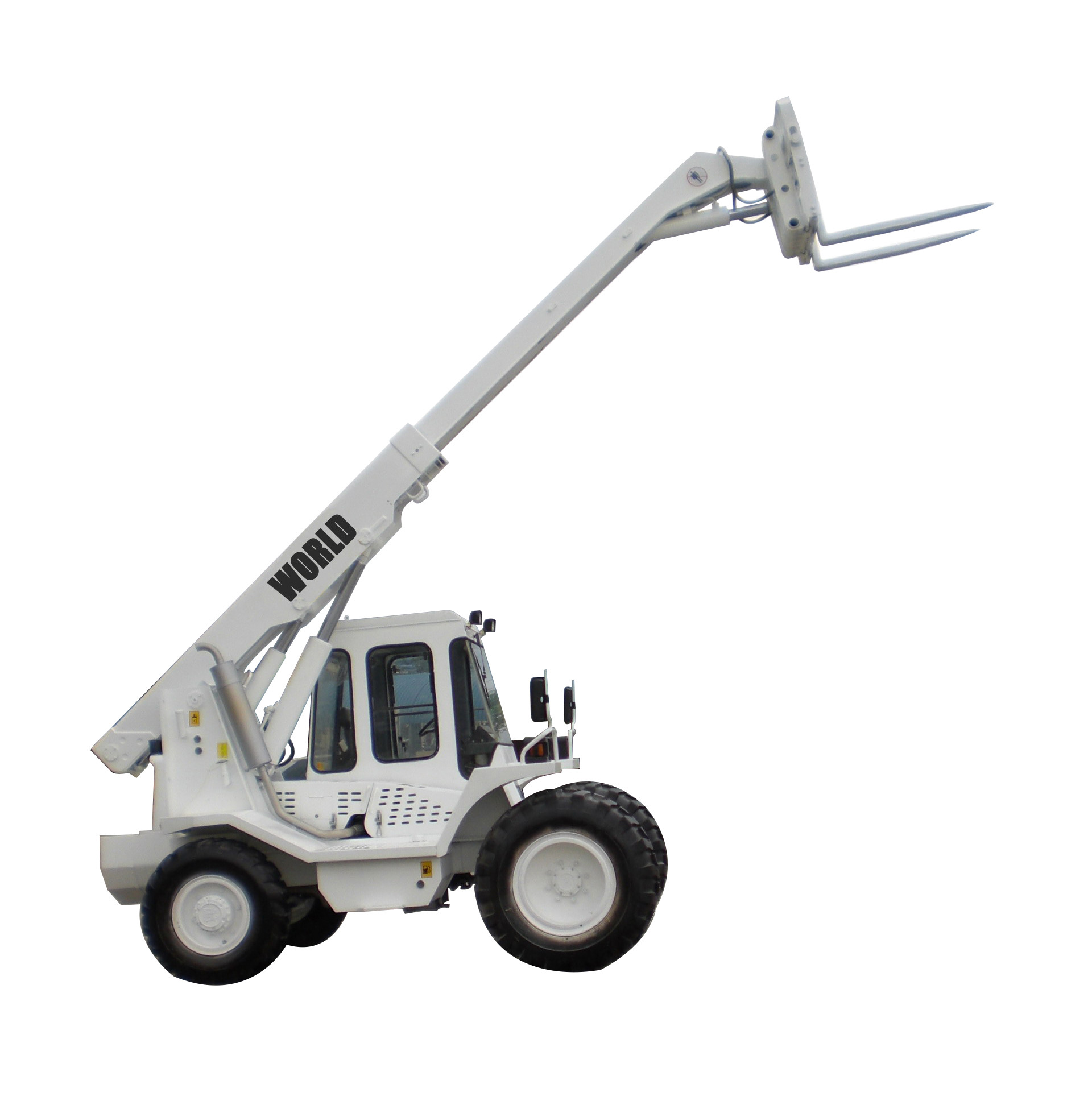

WEA25-4 Telescopic Forklift

WEA25-4 is multi-purposed telescopic forklift with rough terrain ability. It is with three section boom with 360 degree rotate chassis. the max lifting height is 15m, max.load capacity is 2500kg.
Equipped with Dongfeng Cummis turbo-charged engine with common rail fuel system, the machine is powerful, engergy-saving and environment-friendly. It can meed the high-efficient operation requirement.
The power system is equipped with air-air intercooler, which reduced the inlet temperature of the engine, improve the volume of air inlet,incresed the power of engine.
Equipped with hydro-static tranmission, the machine is with good self-adaptability and opereration ability. All of the hydraulic pump, main drive, hydraulic cylinder,pilot control valve adopts well-known brand.

Product Overview

4 Wheel Drive EPA Diesel Engine Telescopic Handler 2.5T load Telescopic Forklift 4WD Telehandler

Product Specification

Item	Specification	WEA25-4	WEA30-4
1	Rated load	2500 kg	3000kg
2	Operating weight	8200 kg	8600kg
3	Max. Lifting height	7000 mm	7000mm
4	Load capacity @ max. Forward reach	1000 kg	1250 kg
5	Max Out-Reach distance	3350mm	3350mm
6	Max. Loading Capacity(Max Out-Reach)	1300 kg	1400 kg
7	Load center	500 mm	500 mm
8	Max.driving force	≥50 kN	≥50 kN
9	Braking distance	≤12.5 m	≤12.5 m
10	Min. Ground clearance	400mm	400mm
11	Wheel Base	2700 mm	2700 mm
12	Tread	1870 mm	1870 mm
13	Min. Turning radius outer tire center	≤6200 mm	≤6200 mm
14	The second Boom reach time	≤12.05/10s	≤12.05/10s
	The second Boom get back time	≤6.02/5.5s	≤6.02/5.5s
	Lifting time	≤25.2/22.5s	≤25.2/22.5s
	Descending time	≤15.2/14 s	≤15.2/14 s
15	Telescopic Boom Changing angle range	-11°～60°	-11°～60°
16	Travelling speed (unloaded)	30km/h	30km/h
17	Engine Model	4DK100-T304	4DK100-T304
18	Engine Rated power	74 KW	74 KW
19	Engine Rated Speed	2200r/min	2200r/min
20	Tire	Front 16/70-24 Rear 10.00/20-16	Front16/70-24 Rear10.00/20-16
21	Overall dimension (without fork)	573023902485 mm	573023902485 mm

Package And Delivery

4 Wheel Drive EPA Diesel Engine Telescopic Handler 2.5T load Telescopic Forklift 4WD Telehandler
